Solutions for all tank requirements including storage, mixing, steam/glycol jacketed, decarboxylation, and grant tanks.
All tanks are manufactured from food-grade 304 or 316 stainless steel with integrated clean-in-place (CIP) infrastructure.

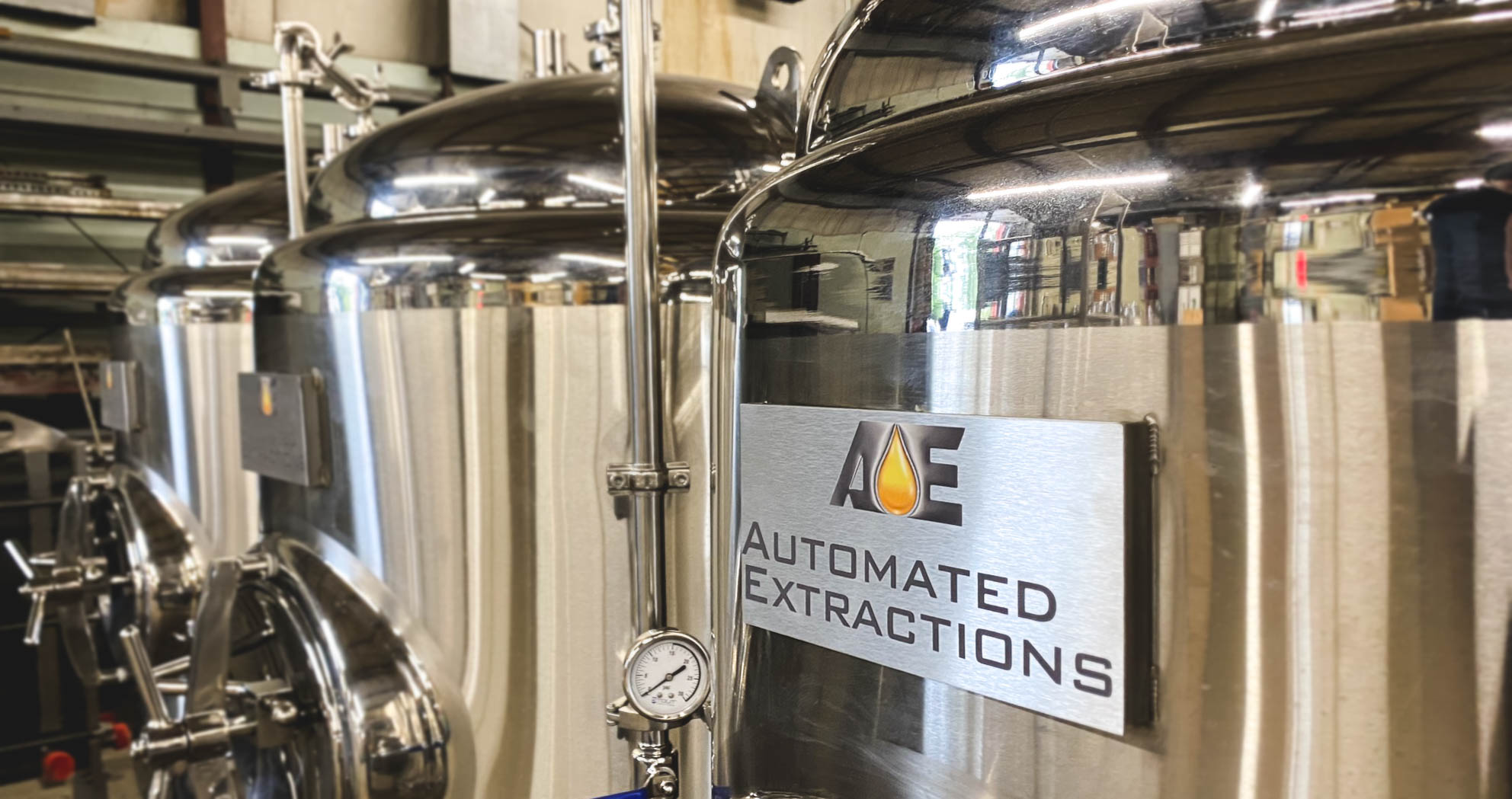

Process Tanks
Storage Tanks
- Custom sized from 30G to 60BBL (or larger!)
- Chose 304 or 316 stainless steel construction with sanitary fittings
- Glycol jacketed for cold storage applications, such as bulk solvent storage, oil/solvent tincture storage, and buffer tanks
- Built in CIP port and spray ball
- Customized for your port requirements
Mixing Tanks
- Ideal for mixing of biomass with solvent
- Choose 304 or 316 stainless steel with sanitary fitting
- Glycol jacketed and insulated
- Explosion proof mixing motor (sized per your application)
- Upper manway & hopper inlet
- Built in CIP port and spray ball
- Customized for your volume and port requirements
Heated Tanks
- Custom sized from 30G to 60BBL (or larger!)
- Choose 304 or 316 stainless steel construction with sanitary fittings
- Steam jacketed for heated storage applications, such as solvent recovery feed and discharge vessels
- Built in CIP port and spray ball
- Customized for your port requirements
Grant Tanks
Grant tanks are used as buffer tanks when the flow from the upstream process is irregular or intermittent, such as when filtering biomass in a press to squeeze out the remaining liquid.
- Sized for your process
- Includes low and high fill level sensors to automatically pump to downstream process as grant tank fills
- 304 or 316 stainless steel construction with sanitary fittings
- Customized for your port requirements
