Automated Extractions designs and manufactures extraction and separation equipment optimized for hemp, cannabis, and botanical processing. Using cryogenic ethanol extraction methods, you get superior yields without sacrificing product quality. Every system is engineered to maximize processing efficiency and minimize solvent usage. Whether you need a full turnkey extraction system or want to augment your current equipment, Automated Extractions can help.
Extraction & Separation Equipment
Most extraction and separation system consists of two primary components:
- Extraction vessels
- Separation equipment
Extraction Tanks
Biomass and solvent (ethanol) is transferred into the agitation tank and blended for the desired duration. Explosion proof motor, paddle agitator, and recirculation pump ensures a homogeneous blend during extraction
- 304 or 316 Stainless Steel construction
- Sizes from 50 gal to 60 bbl
- Explosion proof agitation motors (C1D2)
- Top-loading manway with sight glass
- Bottom discharge valve with quick-connect fittings
- Jacketed and insulated tank capable of -40°C extraction temperatures
- Built in CIP spray ball for cleaning

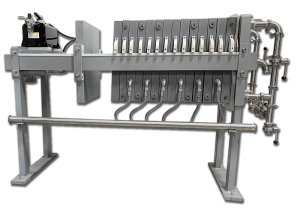

Filter Press
High-capacity filtration for separating and extracting 99%+ of solvent from biomass:
- 1 – 100 cubic feet capacity (25 – 1800lbs per batch)
- Hydraulic press operates at 4000 psi to compress plates and seal internal chambers
- 1 micron filter plated filters full batch is 30 minutes
- Nitrogen purged and low-pressure squeeze bladders
- -20°C operational temperature
- Food grade filter material and stainless sanitary fittings for GMP compliance
Centrifuge Systems
- High-speed separation for liquid-solid extraction
- Continuous flow processing capability
- Explosion-proof designs available
- Multiple basket sizes for various batch volumes
Extraction Tanks
Jacketed Extraction Vessels
- Glycol jacketed for temperature control (-40C to +60C)
- CIP spray ball for automated cleaning
Filter Presses
Centrifuge Systems
- High-speed separation for liquid-solid extraction
- Continuous flow processing capability
- Explosion-proof designs available
- Multiple basket sizes for various batch volumes
