Automated Extractions supplies explosion-proof positive displacement pumps for accurate product transfer, circulation, and clean-in-place (CIP) systems. We offer of pumps well-suited for different size systems and different applications within your process.
Industrial Pump Systems
Positive Displacement Lobe Pumps
Lobe pumps are a great choice for transferring liquids and oils when a positive displacement is required. Available with explosion proof motors for pumping winterized tincture through filter skids, crude oil transfers, and decarboxylated crude transfers.
- Positive Displacement – Consistent flow regardless of back pressure
- Explosion Proof Motors – C1D2 rated
- Stainless Steel – 304 or 316 contact parts
| Model | Capacity | Features | Application |
|---|---|---|---|
| AE-LOBE-1GPM | 1 GPM | Explosion Proof | Lab scale |
| AE-LOBE-3GPM | 3 GPM | Explosion Proof | Small commercial |
| AE-LOBE-10GPM | 10 GPM | Explosion Proof | Mid-scale |
| AE-LOBE-20GPM | 20 GPM | Explosion Proof | Production |
| AE-LOBE-40GPM | 40 GPM | Explosion Proof | High-volume |
Pneumatically Operated Diaphragm Pumps
Pneumatically operated diaphragm pumps are a perfect choice for many extraction applications.
Automated Extractions supplies explosion proof diaphragm pumps for ethanol transfers, biomass to filter press transfers, tincture pumping, and circulation while winterizing. We also have mobile pump assemblies for clean in place (CIP) duty.
- Pneumatically Operated – No electrical components in pump head
- Self-Priming – Automatic air evacuation
- Solids Handling – Can transfer slurries
| Model | Displacement | Capacity | Pressure |
|---|---|---|---|
| AE-DIA-1IN | 1 Inch | 12 GPM | 80 psi |
| AE-DIA-1.5IN | 1.5 Inch | 30 GPM | 80 psi |
| AE-DIA-2IN | 2 Inch | 50 GPM | 80 psi |

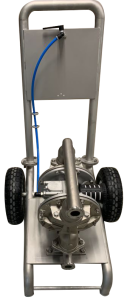

Mobile Pump Carts
Ideal for clean-in-place (CIP) systems and general purpose applications, our mobile pump assemblies are available with a variety of pump sizes and styles.
- Steel or stainless steel frame with integrated pump
- Suction and discharge hose connections
- Heavy-duty wheels for facility movement
- Applications: CIP, emergency transfer, tank-to-tank
